SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

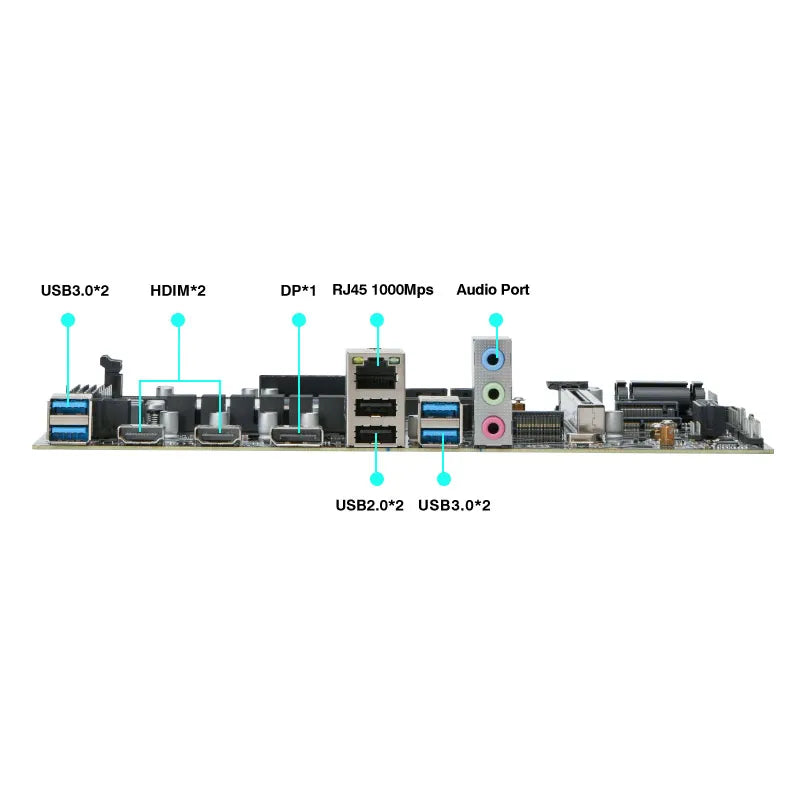

Back I/O Ports: 1x RJ45,4x USB 3.2/3.1 Gen 1,Disply Port,HDMI 2.0

Brand Name: ERYING

Certification: RoHS,FCC,CE

Chipset: Intel Others

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 2

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

Number of SATA Ports: 4

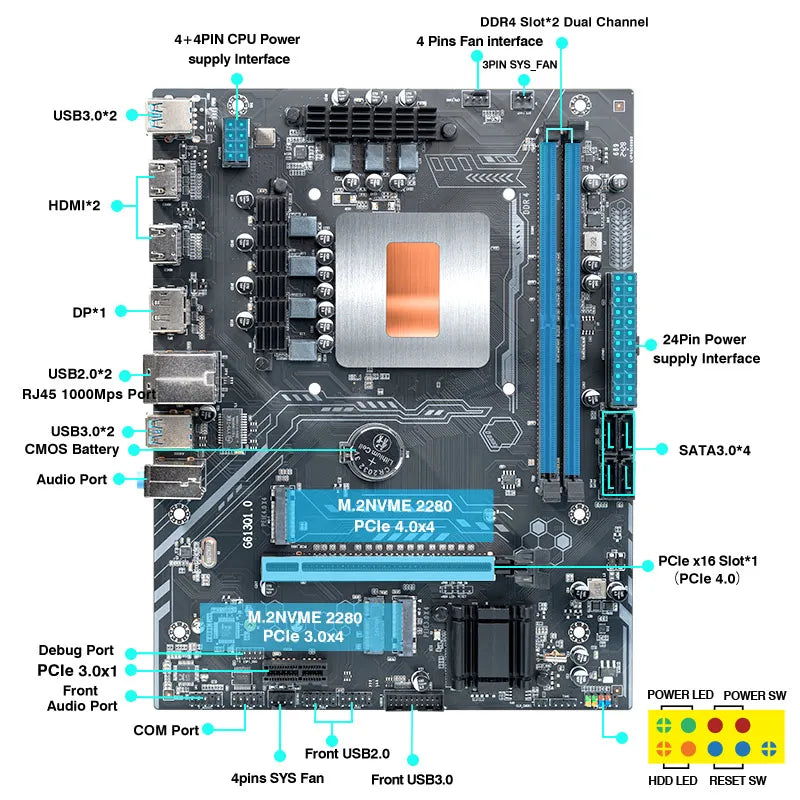

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,USB 2.0 Connector,COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: 1x RJ45,WIFI (AC)

Origin: Mainland China

PCI - E standards: PCI - E 4.0

Package: Yes

Processor compatibility: 11th Intel Core i7

Quality Certification: ce,ROHS,FCC

RAID Supported: No

Socket Type: Onboard CPU

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0,USB 3.1 Gen1

Supports M.2 SSD: 2280,2260

Usage Scenario: Gaming,Audio & Video,Office,Video Production

With CPU: Yes

The processor of this motherboard is the ES version (i.e. Engineering Sample), and the model displayed on CPU-Z is" 0000"(NOT showing specific model number).

If the customer places an order,then means accept the ES version by default. Disputes and refunds caused by this reason will not be accepted, and the final resolution will belong to our store.

For the VRM heatsink, please don't worry,we already improved quality, there are no VRM overheat problems.
