SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

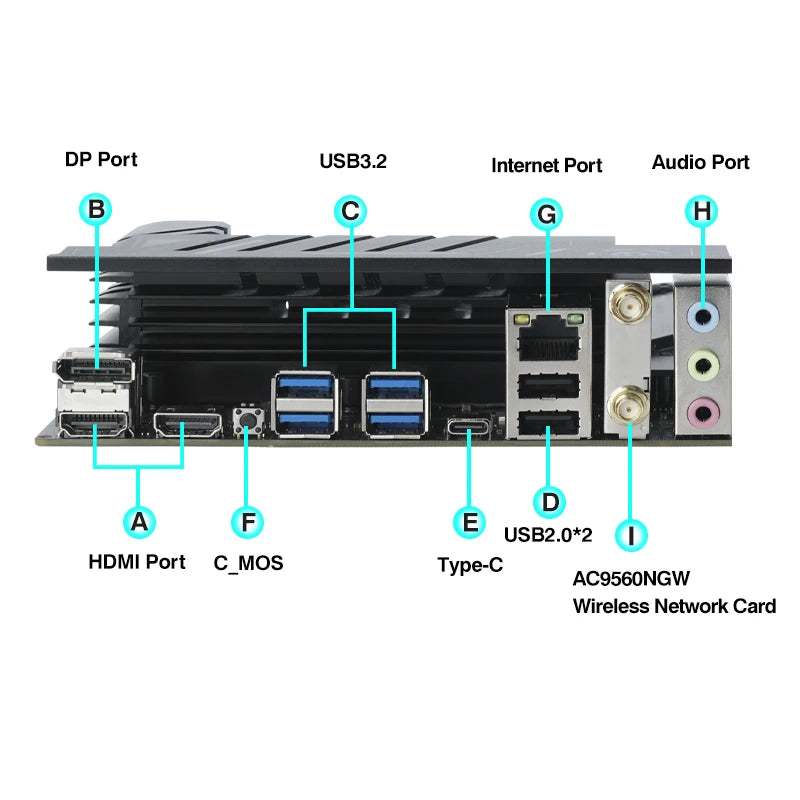

Back I/O Ports: 1x RJ45,WiFi,3 x Audio Jacks,4x USB 3.2/3.1 Gen 1,Disply Port,HDMI 2.0

Brand Name: ERYING

Certification: RoHS,FCC,CE

Chipset: Intel Others

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Max LAN Speed: 2500Mbps

Maximum Ram Capacity: 96GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 3

Number of PCI: 2

Number of PCIe x 16: 1

Number of PCIe x 4: 1

Number of SATA Ports: 4

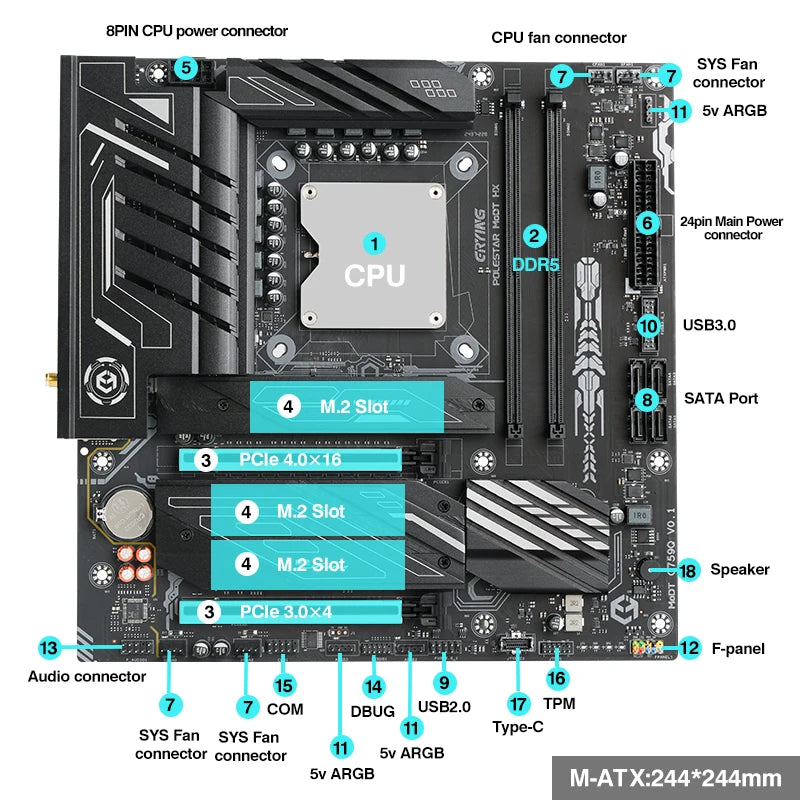

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,SPI TPM Header,Addressable RGB Header,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,OthersConnectors & Header,Speaker Connector,USB 2.0 Connector,COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: 1x RJ45,WIFI (AC)

Origin: Mainland China

PCI - E standards: PCI - E 4.0

Package: Yes

Ports: M.2

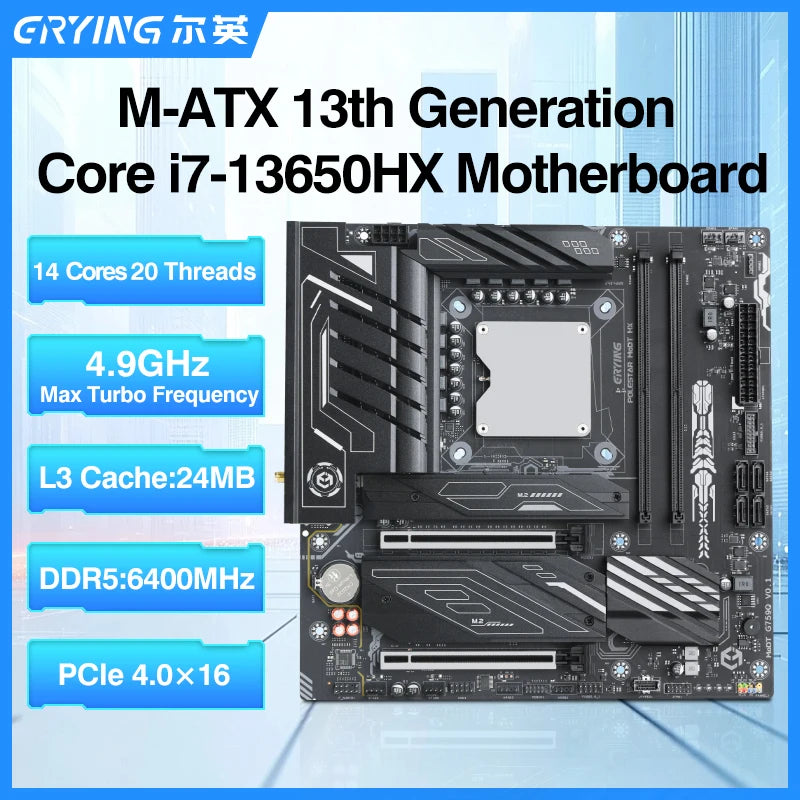

Processor compatibility: 13th Intel Core i7

Quality Certification: ce,ROHS,FCC

RAID Supported: No

Socket Type: Onboard CPU

Special Features: Support for Overclocking

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Support USB Type: USB 2.0,USB 3.0,USB 3.2 Gen1

Supports M.2 SSD: 2242,2280,2260

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Design,Video Production,HPC

With CPU: Yes

DDR5 RAM Compatibility issues notification:

Due to the unique nature of the MODT platform, RAM memory plan is a challenging task.

Currently, Our DDR5 MODT platform is not compatible with some of 32GB RAM memories.

If you need to use 32GB of single memory, please choose carefully or ask us before place order.

And To meet the needs of high-capacity memory users,it is the first time for us to adapt to four memory slot channels. But the compatibility requirements are relatively high.

So,for these four slot user,we recommend to choose RAM frequencies between 4800Mhz and 5200Mhz.

When using only 2 RAMs, prioritize using the 2nd and 4th RAM Slot.

Please follow us for further optimization will be carried out in the future.

(TIPs: We do not recommend using any memory from Gloway and Asgard brands)

Thank you so much for understanding!
