SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

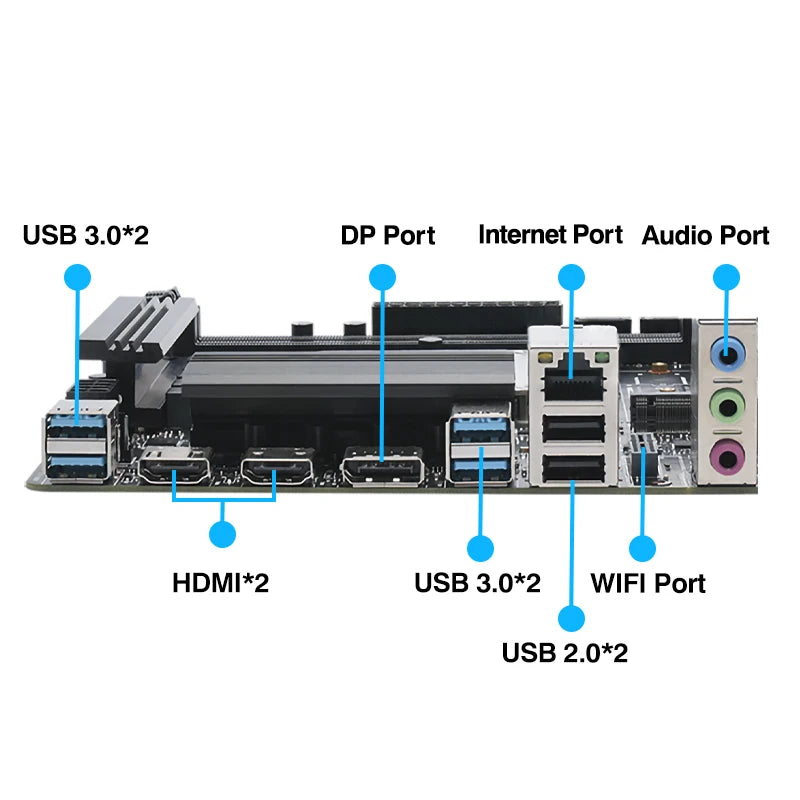

Back I/O Ports: 1x RJ45,WiFi,3 x Audio Jacks,4x USB 3.2/3.1 Gen 1,Disply Port,HDMI 2.0

Brand Name: ERYING

Certification: RoHS,FCC,CE

Chipset: Intel Others

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

GPU: UHD Graphics for 14th Gen Processors(Execution Units 16)

Hign-concerned Chemical: None

IHS Cover: VC IHS Cover

Max LAN Speed: 2500Mbps

Maximum Ram Capacity: 64 GB

Memory channel: Double

Motherboard Size: 185*240mm

Number Of Memory Slots: 2

Number of M.2: 3

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 1

Number of PCIe x 8: 0

Number of SATA Ports: 4

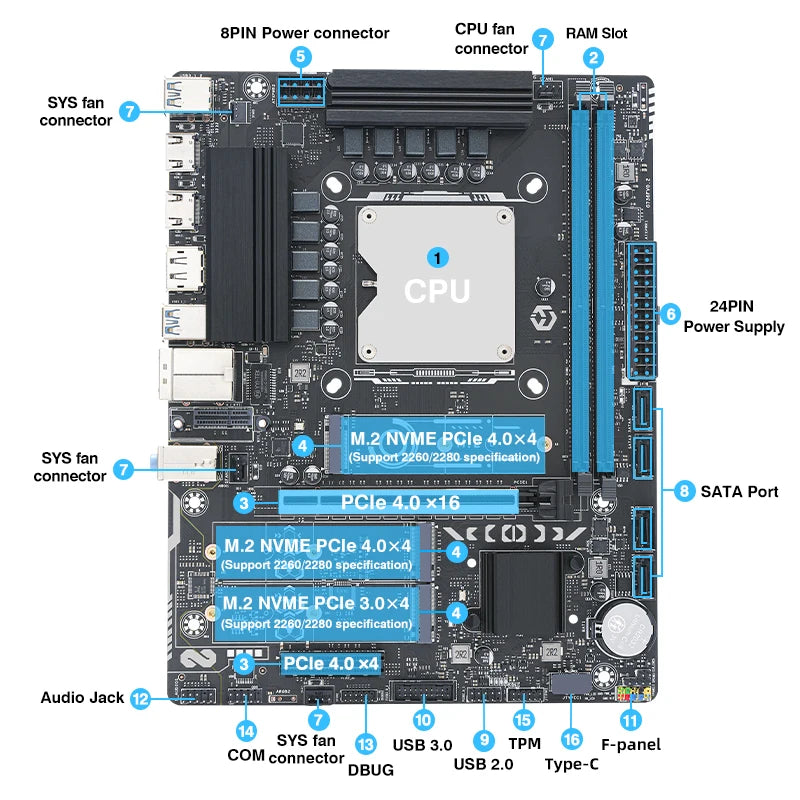

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector,OthersConnectors & Header,USB 2.0 Connector,COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 4.0

Package: Yes

Processor compatibility: Intel Core i7

Quality Certification: ce,ROHS,FCC

RAID Supported: No

RAM: Dual Channel DDR4 3200/3600(OC+)MHz

Socket Type: Onboard CPU

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0,USB 3.2 Gen1

Supports M.2 SSD: 2242,2280,2260

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Design,Video Production,HPC

With CPU: Yes
