DIY Gaming Computer Motherboard CPU Combo 13th Core Interposer Q1HY ES 0000(Refer to Kit i9 13900HK)14C20T DDR5 RAM placa madre
DIY Gaming Computer Motherboard CPU Combo 13th Core Interposer Q1HY ES 0000(Refer to Kit i9 13900HK)14C20T DDR5 RAM placa madre
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Audio Channels: 5.1

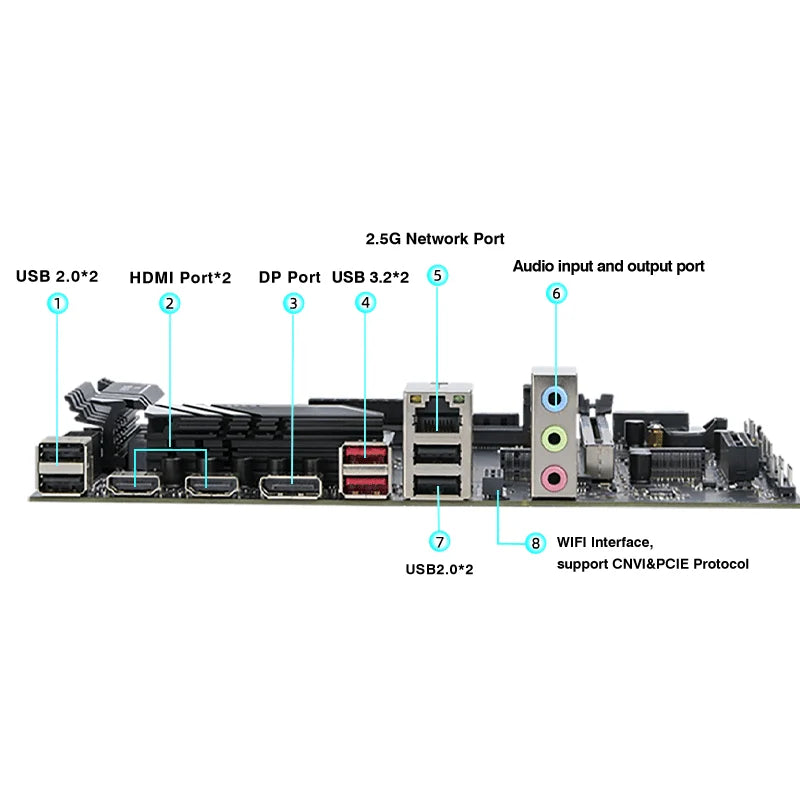

Back I/O Ports: 1x RJ45,3 x Audio Jacks,2x USB 3.2/3.1 Gen 1,Disply Port,4 x USB 2.0,HDMI 2.0
Brand Name: ERYING
Certification: RoHS,FCC,CE
Chipset: Intel Others
Chipset Manufacturer: Intel
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Max LAN Speed: 2500Mbps
Maximum Ram Capacity: 96GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 0
Number of PCIe x 16: 1
Number of PCIe x 4: 1
Number of PCIe x 8: 1
Number of SATA Ports: 2

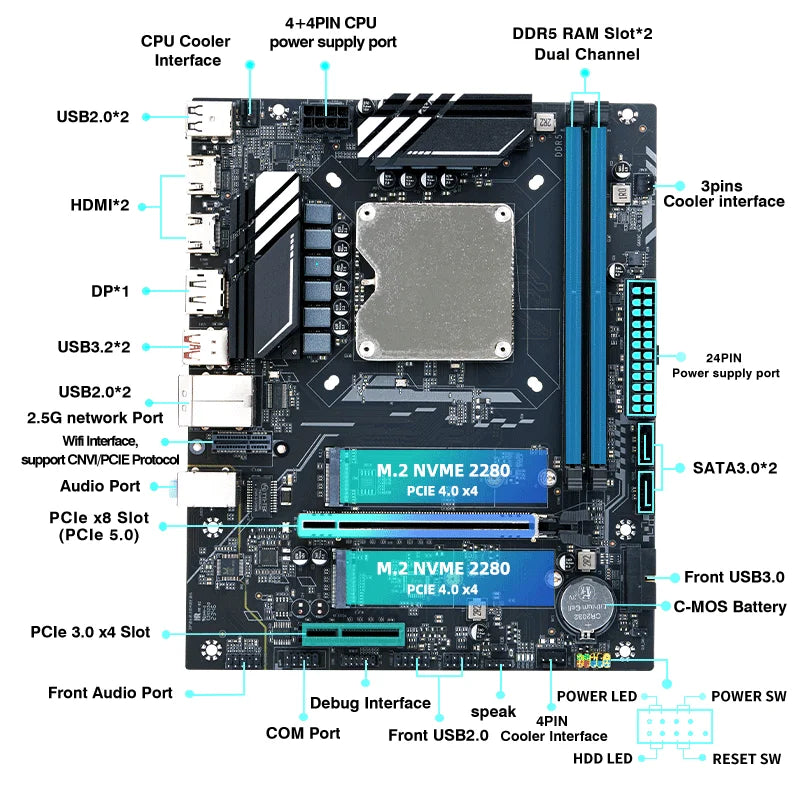

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,SPI TPM Header,Chassis(SYS) Fan Connector(s),USB 3.0 Connector,8-pin +12V Power Connector,OthersConnectors & Header,Speaker Connector,Serial Port Connector,SATA Power Connector(s),COM Port Header,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI - E 5.0
Package: Yes
Ports: M.2

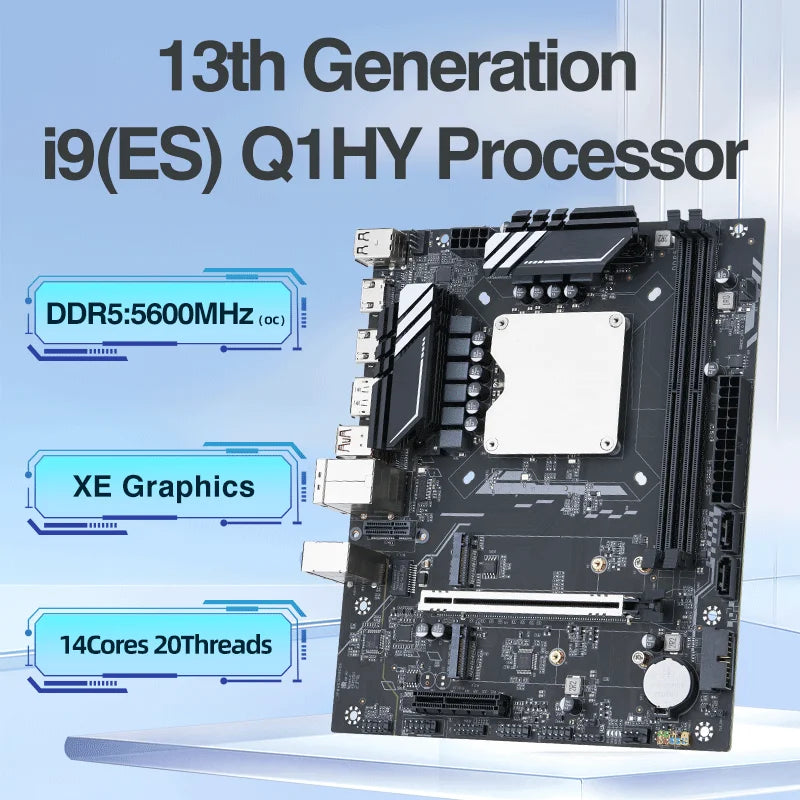

Processor compatibility: 13th Intel Core i9
Quality Certification: ce,ROHS,FCC
RAID Supported: No
Socket Type: Onboard CPU
Special Features: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR5
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2242,2280,2260
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Design,Video Production,HPC
With CPU: Yes
DDR5 RAM Compatibility issues notification:
Due to the unique nature of the MODT platform, RAM memory plan is a challenging task.
Currently. Our DDR5 MODT platform is not compatible with some of 32GB RAM memories.
If you need to use 32GB of single memory, please choose carefully or ask us before place order.
For the frequency, usually we recommend to use DDR5 memory with frequencies of 4800Mhz and 5200Mhz to keep stable.
our motherboard can Supports up to 5600 (XMP overclocking) Mhz, but we recommend only using Hynix's original unmarked(not relabled memory).
(TIPs: We do not recommend using any memory from Gloway and Asgard brands)
Thank you so much for your understanding!
P.S:
The processor of this motherboard is the ES version (i.e. Engineering Sample), and the model displayed on CPU-Z is" 0000"(NOT showing specific model number).
If the customer places an order,then means accept the ES version by default. Disputes and refunds caused by this reason will not be accepted, and the final resolution will belong to our store.
